Mounty ATV Mounted drills

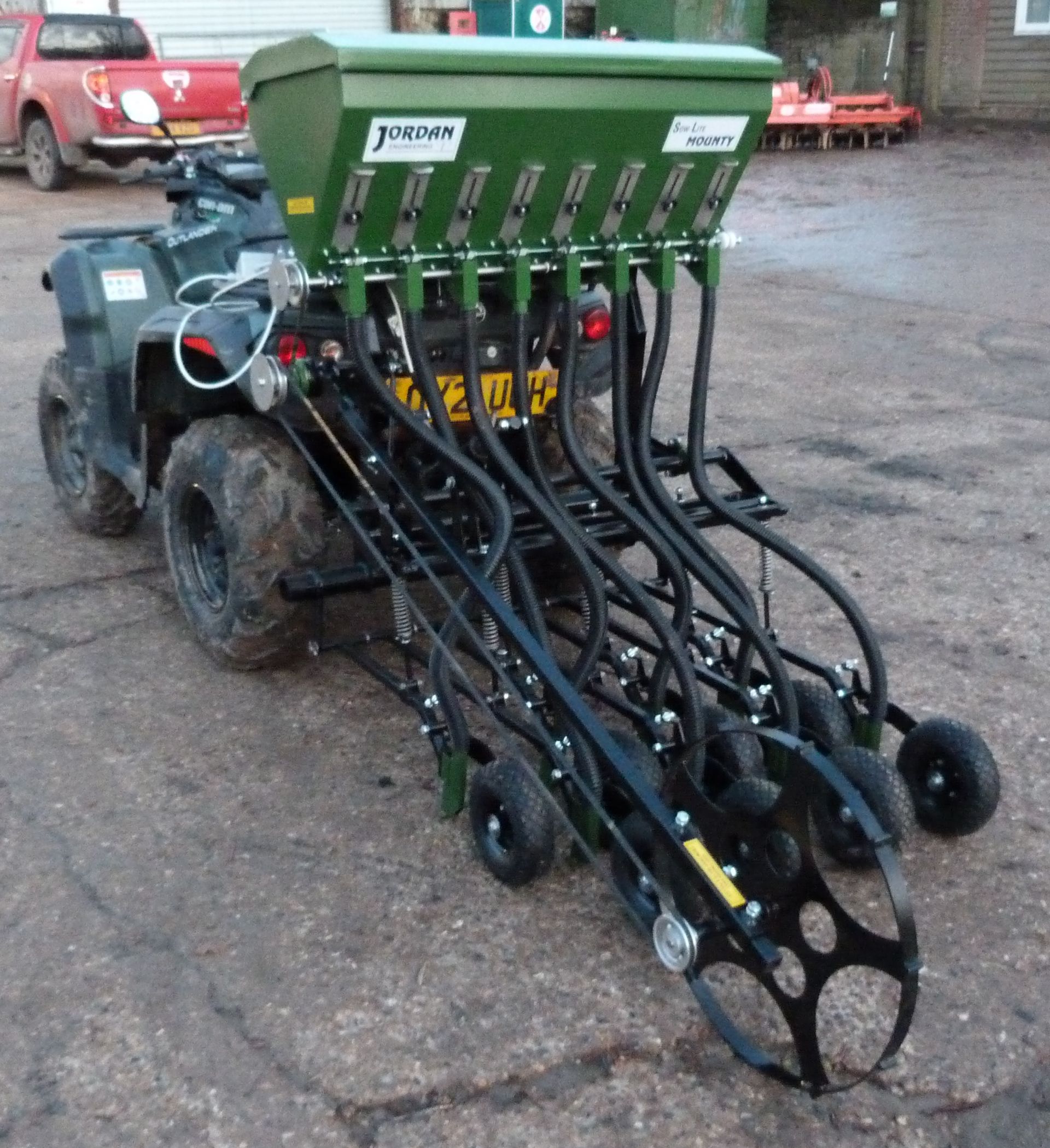

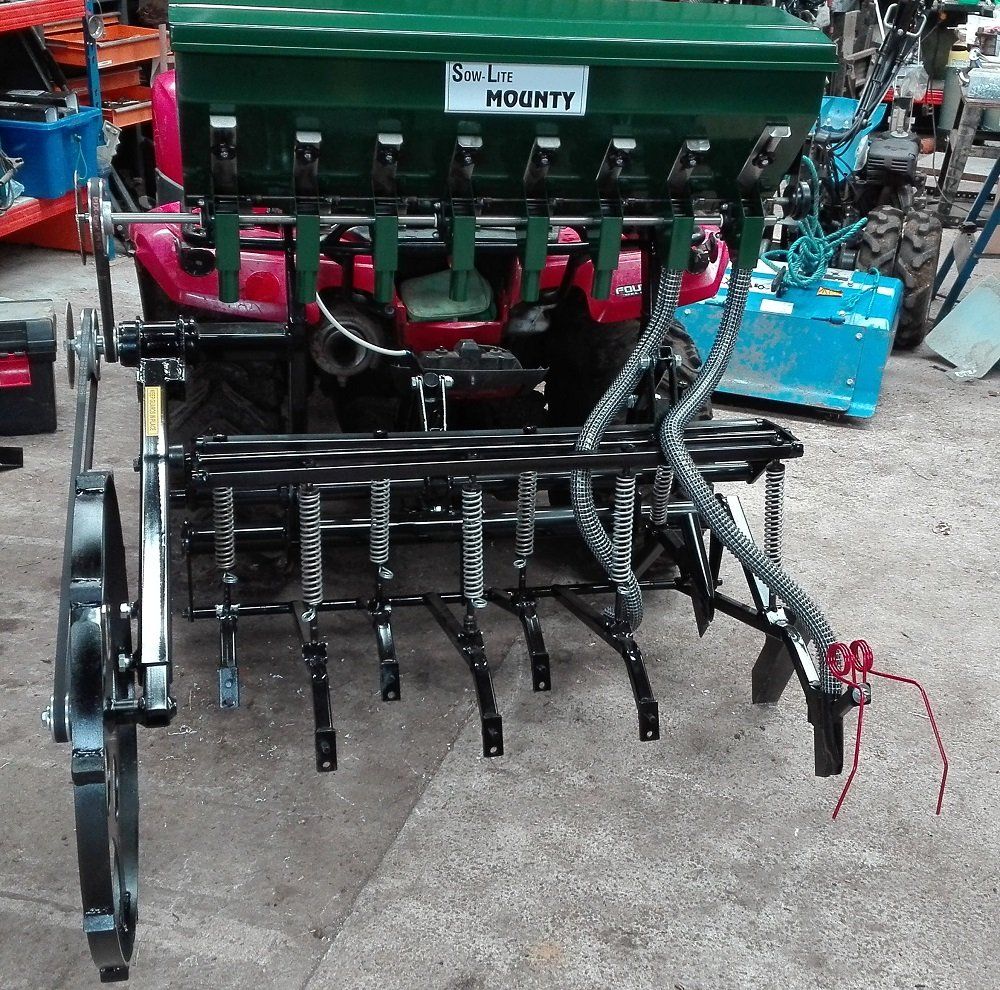

Mounty ATV mounted seed drills
For smaller or sensitive areas of crop patching, grass seeding, over seeding, game cover or for just carrying out conventional sowing the Mounty ATV drill is an excellent machine for the job. Introduced in autumn 2017, it is one of the only drills available for mounting onto the ATV itself.
It is available in a number of builds to suit the size of ATV or UTV it will be mounted on.
There are choices of width, hopper size and also row spacing.
It can do mostly all that its big brother the Super Sow-Lite can do, but is more suited to smaller areas.
Features of Mounty drills
- ATV or UTV mounted models
- Working widths of 1.0 & 1.2 Mtrs
- Choice of row spacing (125mm, 165mm and 250mm)
- Wide row spacing - ideal for cover crops,
- Narrow spacing for conventional seeding and overseeding

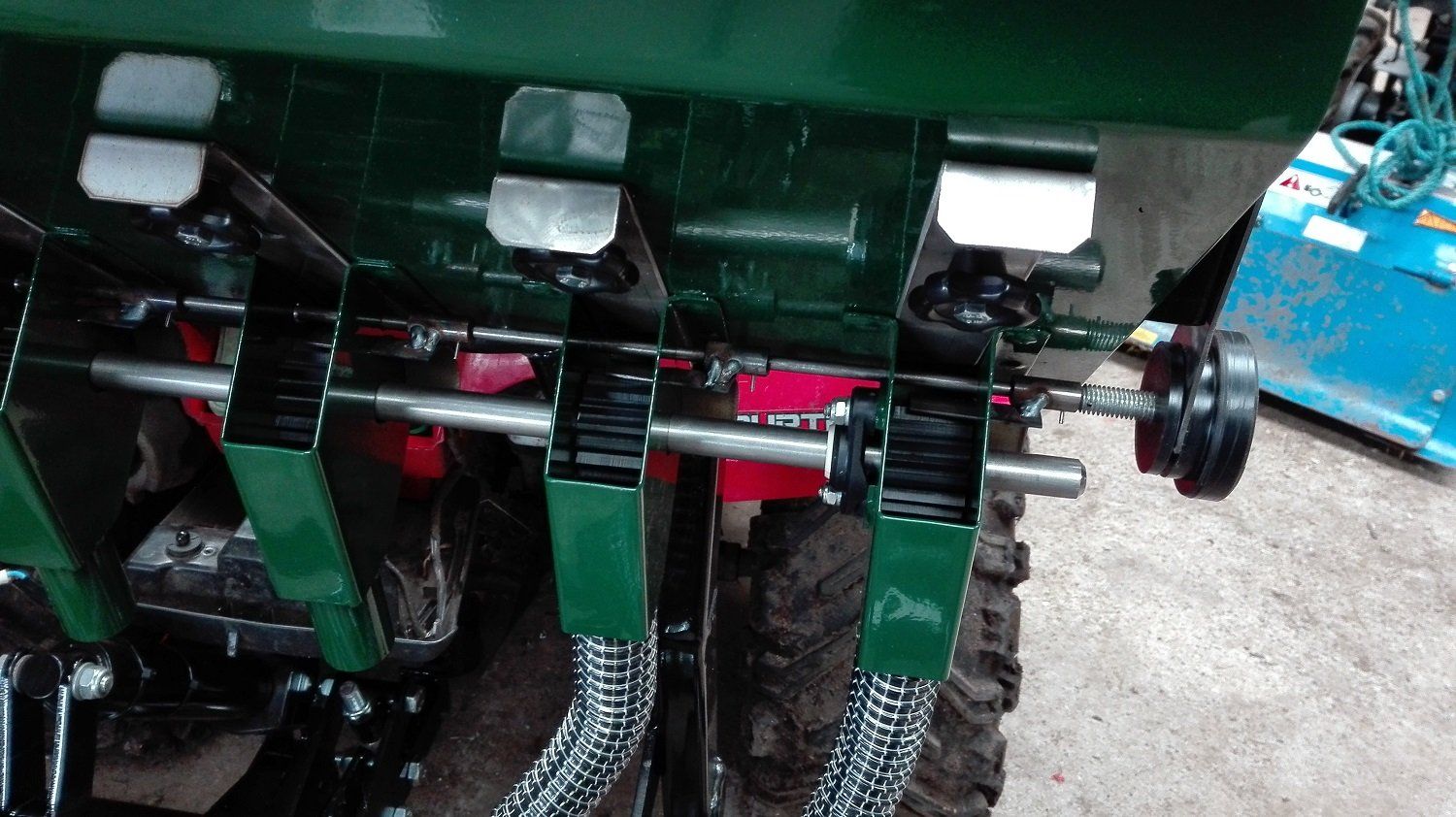

- Pegged roller metering system (fluted optional)
- Variable speed drive box to alter seed rate
- Choice of coulter types
- Single or multi-compartment seed hoppers
- A choice of metering rollers to suit all seed types
- Wide range of optional equipment available
- Fitted with stainless steel metering flaps which can be suppplied with independent adjustment to match different seed size when inter-sowing
Full control of seed rate
Our unique Vari-Mini variable drivebox enables full control of the seed rate, and also has high and low ranges. Adjustable blanking plates control flow of small seed and can also be used to blank off individual units.
Standard and ‘knife edge’ coulters
Standard 'Tine type' coulters are hard wearing and suitable for most soil types. They are capable of cutting into the ground easily. Alternatively, you can specify ‘knife edge’ coulters for over seeding. These are highly effective for all types of soil. Feel free to discuss your seeding requirements with us so that we can offer you a tailored solution.
Simple depth control
The Mountys coulters are raised by an electric actuator which also stops the flow of seed, operated from a simple switch mounted on the towing vehicle.
All models feature a clever parallel link that allows independent setting of sowing depth between front and rear coulters. This is particularly useful when twin sowing large and small seeds e.g. maize and sorghum.
Features and options of Mounty ATV seed drills:
- Various coulter options
- Fine seed rollers
- Covering blades and press wheels
- Special drive box ratios
- Full width covering harrow
- Choice of sowing width
- Choice of row width
- Vari speed drive or adjustable roller metering
Our prototypre Mounty patching drill misses in a crop of winter wheat... working at speed!
